Rechargeable Lithium Polymer Battery Cell 4030130 3.7V 2000mAh 7.4wh Lipo Battery Cell
Main parameters:
Product model: LP4030130
Nominal capacity: 2000mAh
Product size: 4.0x30x130mm
Rated voltage: 3.7V
Charging voltage: 4.2V
Charging temperature: 0 ° C~45 ° C
Discharge temperature: -20 ° C~+60 ° C
Storage temperature: -20 ° C~+35 ° C
Charging current: Standard charging: 0.5C, fast charging: 1.0C
Standard charging method: Charge to 4.25V at 0.5C CC (constant current),
Charge again with CV (constant voltage 4.2V) until the charging current is ≤ 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C
Protection IC parameters: overcharge protection voltage 4.20V ± 0.05V
Over discharge protection voltage 2.7V ± 0.1V
Product features:
1. High security performance
2. Thin thickness, adjustable thickness
3. Lightweight
4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved
5. Low internal resistance and long cycle life
6. Flexible size available
7. Good discharge performance
Applications:
Digital devices:
Smartphones: Polymer batteries have become the preferred battery type for smartphones due to their small size and light weight, especially widely used in ultra-thin phone designs.
Wearable devices: such as smartwatches, Bluetooth earphones, etc., devices that require high integration and high battery life.
Digital cameras: products that require high battery life and strong compatibility with lightweight bodies, such as DSLR cameras, sports cameras, etc.
Power bank:
Mobile power bank: With a capacity of 2000mAh, it is suitable for emergency charging of small electronic devices
Medical equipment, such as portable medical devices, monitors, etc., require batteries to be safe, reliable, and compact in size.
Toy devices, such as children's toy cars, remote-controlled cars, etc., need to balance safety and durability

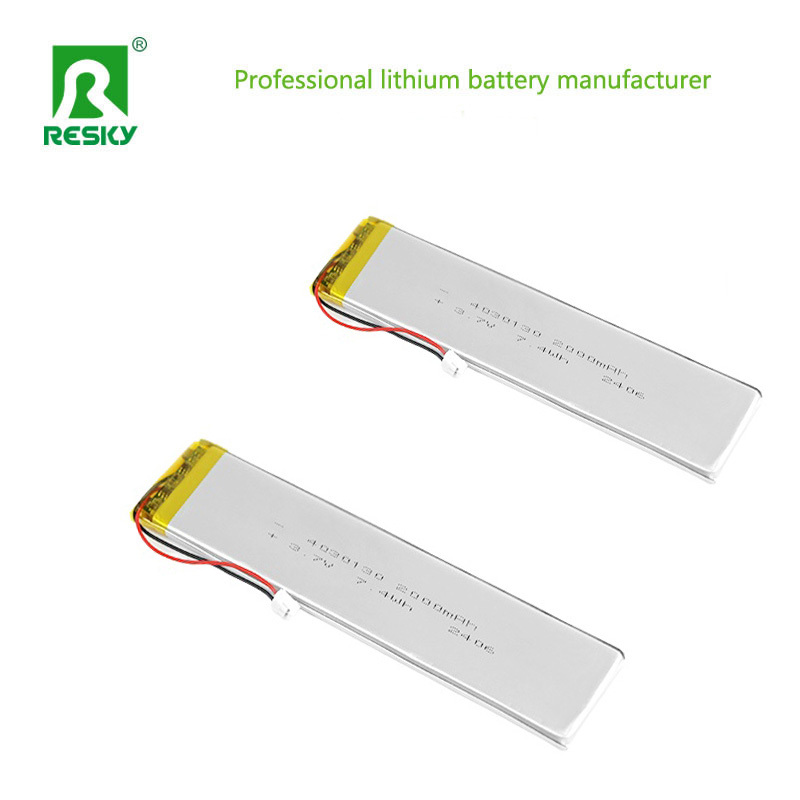

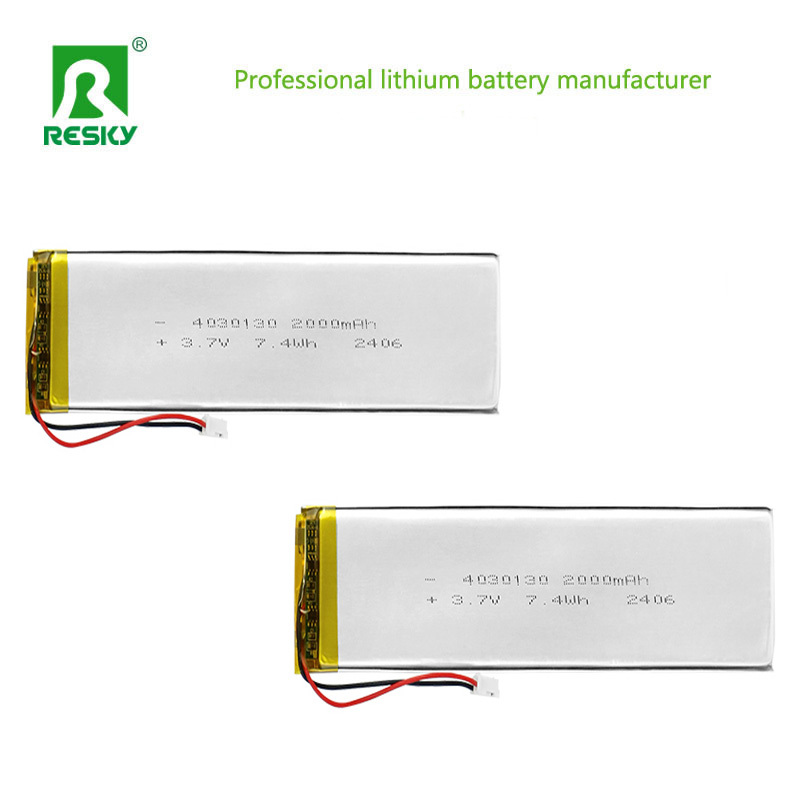

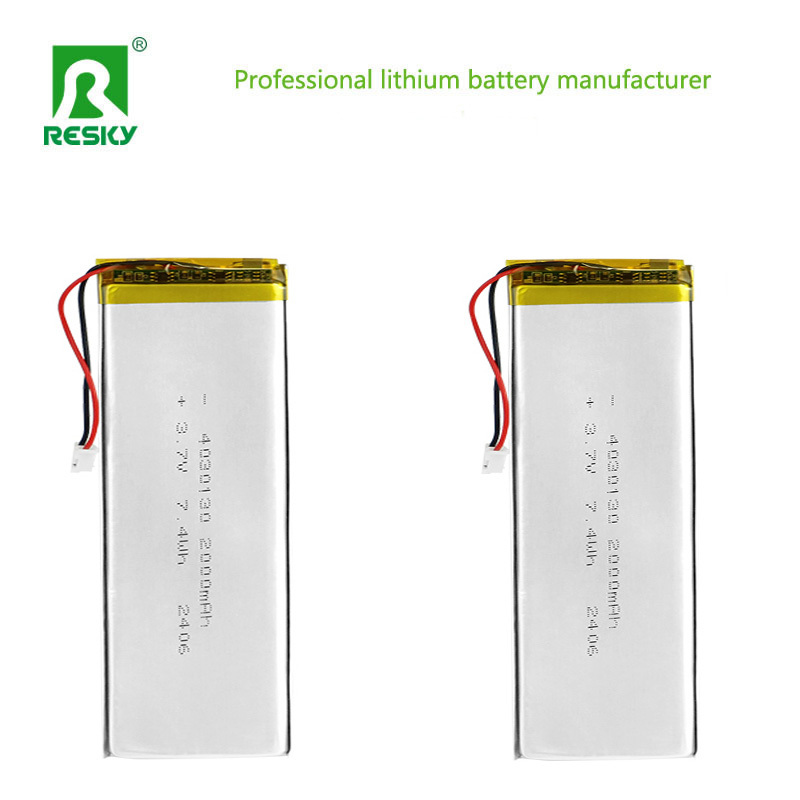

Product pictures:
